| 特点提要 ( General Specifications ) |
| 吃瓜网
定子毗连体例 ( Winding Type ) | 星形 ( Star connection) |
| 霍尔杀伤方向 ( Hall Effect Angle ) | 120度电的视角 ( Electrical Angle of 120 degree) |
| 径向接缝处 ( Radial Play ) | 0.02mm@450g |
| 轴径间距 ( Axial Play ) | 0.08mm@450g |
| 较大径向根据 ( Max radial force ) | 115N 距卡箍20mm ( 20mm From the flange) |
| 极大载荷负债 ( Max axial force ) | 45N |
| 介电抗弯强度 ( Dielectric Strength ) | 650VAC/1S |
| 接地阻值 ( Insulation Resistance ) | 100MΩ, 500VDC |
| 情形温暖 ( Ambient Temperature ) | -20°C ~ +50°C |
| 绝缘电阻品质 (Insulation Class) | Class B |
| 连接线声明函(Electric Connection) |
| 引出来线形号Type | 找出线感觉Color | 功较Functions |
|
| UL1430 AWG18 | 桔红色 ( Red ) | 电正 ( Vcc ) |
| 玄色 ( Black ) | 外接电源负 ( GND ) |
| UL1430 AWG26 | 海蓝 ( Blue ) | 转移到合理（Rotating Direction）CW/CCW |
|
| 成黄色 (Yellow ) | 0～+5V speed regulation voltage |
|
| 红色的 ( White ) | Speed pulse output(TTL) |
机电能 (Electrical Specifications)
| 单 位 (Unit) | FL57BL005-IEX | FL57BL01-IEX | FL57BL02-IEX |
| 极数 ( Number of poles ) |
| 4 |
| 相数 ( Number of phases ) |
| 3 |
| 三倍端电压 ( Rated voltage ) | VDC | 24 |
| 增加惯量 ( Rated torque) | N.m | 0.055 | 0.11 | 0.22 |
| 不断转运起动转矩 ( Continuous stall torque) | N.m | 0.066 | 0.132 | 0.264 |
| 更多强度 ( Rated speed ) | RPM | 4000 | 4000 | 4000 |
| 三倍工作电压 ( Rated power ) | W | 25 | 46 | 99 |
| 阀值力矩 ( Peak torque ) | N.m | 0.15 | 0.22 | 0.22 |
| 最高值电压 ( Peak current ) | A | 4.0 | 6.0 | 6.0 |
| 线内阻 ( Line to line resistance ) | ohms@20℃ | 2.1 | 0.82 | 0.35 |
| 线电感 ( Line to line inductance ) | mH | 4.1 | 2.3 | 1.0 |
| 起动转矩常数 ( Torque constant ) | N.m/A | 0.04 | 0.04 | 0.04 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 3.0 | 3.0 | 3.0 |
| 上去惯量 ( Rotor inertia ) | g.cm2 | 30 | 75 | 119 |
| 产品设备间距 ( Motor length ) L | mm | 80 | 90 | 120 |
| 重量 ( Weight ) | Kg | 0.5 | 0.6 | 0.8 |
换代机电工程专业还可以是以客服必须 私人订制。
The motor can be designed &manufactured with customized request.
Motor size
Parameter

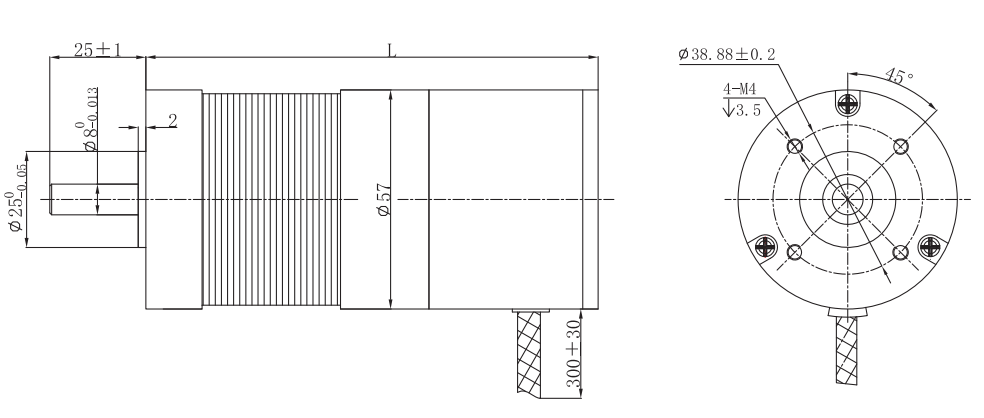

Overall Dimensions
