Parameter

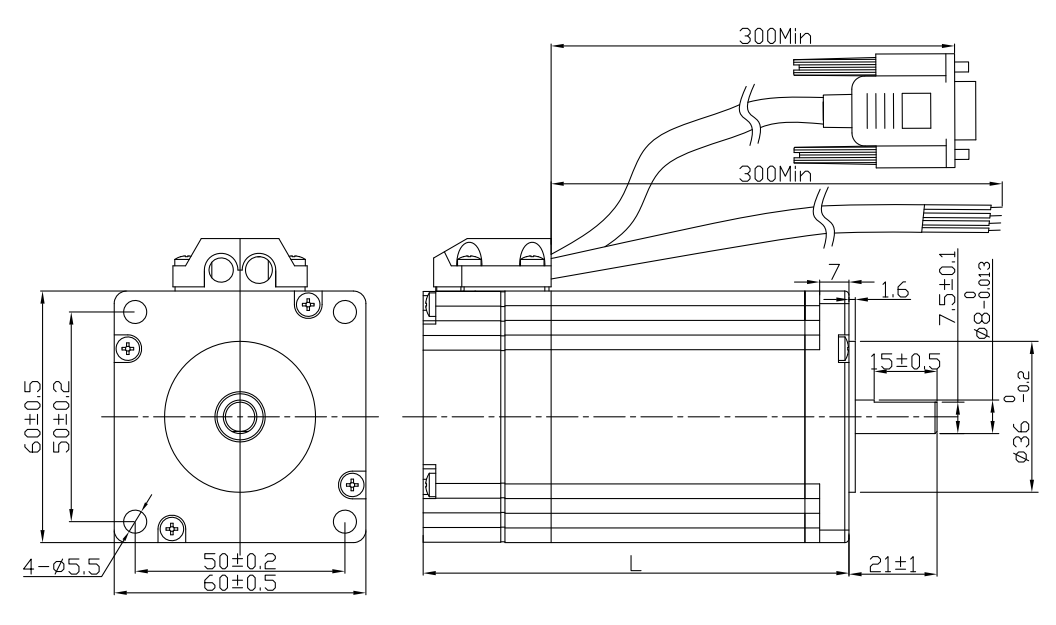

Overall Dimensions
Download
Cooperation| 表现形式(Characteristic） | 性能指标(Parameter) | ||
| 编号规则器案例(Encoder type) | 1、光电公司标识号器 Optical encoder2、磁数字器 Magnetic encoder3、扩张电力变压器Resolver备注名称：种分辩率必选，增长式、相对于值式必选。Note: Multiple resolutions are available；Incremental and absolute values are available. | ||
| 径向吃瓜网 负载(Max radial force ) | 75N@20mm from the flange | 实际情况首要条件Environmental conditions | 再生利用现象温湿度： -20℃~ +40℃；Temperature: -20℃~ +40℃凭借前提内部含水率：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)设备状态：阔别多年破坏、可燃性的气体，油滴，玦尘，海拔有≤1000m(1000~4000m，降额再生利用)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；保存情形：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 载荷根据(Max axial force) | 15N | ||
| 绝缘层品阶(Insulation Class) | B | ||
| 防范等级(Protection level) | IP30 | ||
| 机组(Unit) | FL60SC30 | FL60SC40 | |
| 相交流电 (Phase current) | A | 6.0 | 5.6 |
| 努力惯量 (Holding torque) | N·m | 3.0 | 3.6 |
| 是最高的转速比 (Speed ) | rpm | 1800 | 1800 |
| 商品旋转编码器 (Encoder) | 1000cpr光电公司增量配电网式项目编码器原理1000cpr incremental optical encoder | ||
| 移动惯量 (Rotor inertia) | g.cm2 | 800 | 860 |
| 设备长短 (Motor Length) L | mm | 103 | 109 |
| 食用量 (Weight ) | Kg | 1.4 | 1.6 |
| 号码No. | 引出来线冷暖色Lead Color | 生成线技术参数Lead Gauge | 功郊Function | 表明Description |
| 3 | 红灰白色(Red/White) | CableThree rows of15PIN D-SUB | GND | Signal Power negative |
| 2 | 洁白(Red) | VCC:+5VDC | Signal Power positive | |
| 13 | 淡蓝色(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). | |
| 1 | 蓝玄色(Blue/Black) | EA+ | ||
| 12 | 玄色(Black) | EB- | ||
| 11 | 黑白（Black/White) | EB+ | ||
| 1 | 玄色(Black) | CableUL2464AWG20 | A相(Phase A) | |
| 2 | 健康(Green) | C相(Phase C) | ||
| 3 | 白色的(Red) | B相(Phase B) | ||
| 4 | 橙色(Blue) | D相(Phase D) |
换代电气够如果根据老客户所需环保定制家具。
The motor can be designed &manufactured with customized request.
| FL60SC30 | 283.35 KB |
|
| FL60SC40 | 281.83 KB |
|
