FL32SBL

Product Slotless BLDC motor

Φ 32mm high speed slotless motor, 24VDC, 13000RPM~17000RPM

option:

线圈毗连体例 ( Winding Type )	星形 ( Star connection)
介电強度 ( Dielectric Strength )	600VAC/1S
接地电阻值电阻值( Insulation Resistance )	100MΩ, 500VDC
状态平均温度 ( Ambient Temperature )	-20°C ~ +50°C
耐压品质 (Insulation Class)	Class B
径向隙缝 ( Radial Play )	0.02mm@4N
轴径缝隙 ( Axial Play )	0.14mm@4N
极大径向过载 ( Max radial force )	10N距蝶阀法兰5mm( 5mm From the flange)
较大心轴短路电流( Max axial force)	4N

	单位 (Unit)	FL32SBL64-24V-157130A	FL32SBL50-24V-13075A
极数 ( Number of poles )		4	4
相数 ( Number of phases )		3	3
减半电阻 ( Rated voltage )	VDC	24	24
满载吃瓜网转速 (No load speed)	RPM	17000	13000
变压器空载直流电压 (No load current)	A	0.75	0.3
附加扭矩 ( Rated torque)	mN.m	80	60
增加直流电 (Rated current)	A	6.74	3.95
附加强度 ( Rated speed )	RPM	16100	12000
三倍最大功率 ( Rated power )	W	134.8	75
减半法律效力 (Rated efficiency)	%	83.1	78.3%
顶值惯量 ( Peak torque )	mN.m	240	180
峰峰值直流电 ( Peak current )	A	20.5	11.85
线热敏电阻 ( Line to line resistance )	ohms@20℃	0.12	0.35
线电感 ( Line to line inductance )	mH	0.015	0.033
起动转矩常数 ( Torque constant )	mNm/A	13.7	17.56
反电势 ( Back EMF )	Vrms/KRPM	1.02	1.3
金属外壳-事情导热系数( Housing - Ambient thermal resistance)	K/W	3.24	3.02
机电工程热同时常数(Motor thermal time constant)	S	630	613
吃瓜网定子上限经营许可证室温(Max temperature of winding)	℃	155	155
高压电器的时候常数(Electrical time constant)	ms	0.125	0.095

这一款建筑机电也能采用投资者须得高端定制。

The motor can be designed &manufactured with customized request.

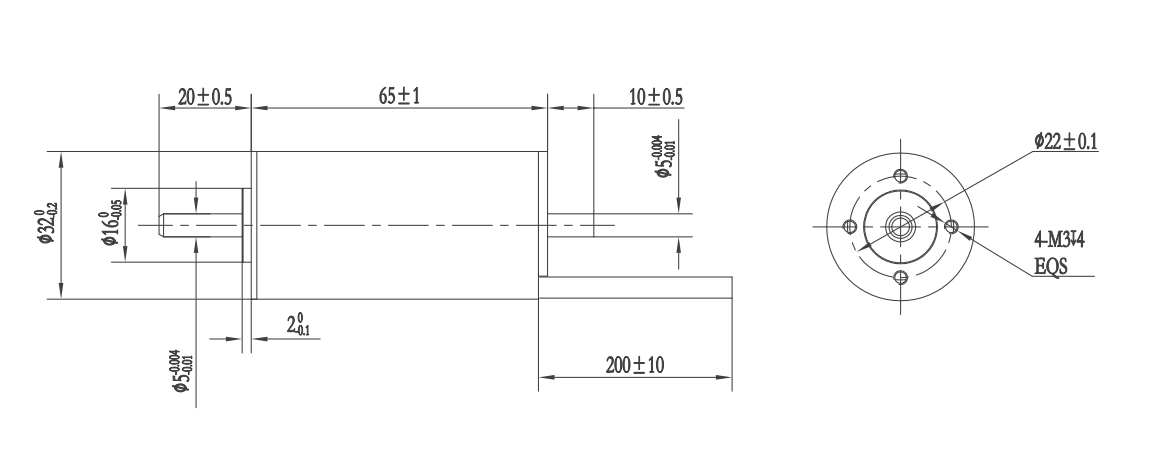

Motor size
