iBLD60W-H-T

Product IE Driver for Outer Rotor Motor

It adopts a 32-bit dedicated motor control chip, with high integration, small size, and complete protection measures. The motor adopts a new PWM control technology, which enables brushless motor operation to have advantages such as high rotation, low vibration, low noise, and good stability.

option:

Inquiry Contact

Parameter
Overall Dimensions
Download
Cooperation

Characteristics:

1) Adopting a dedicated 32-bit motor control chip2) Input voltage 9VDC~30VDC, wide voltage input3) Supports multiple speed regulation modes (PWM/analog)4) Equipped with control functions such as start stop, forward and reverse rotation, braking, etc5) High precision speed and current dual closed-loop control6) Adopting hall sensor control method7) It has protection functions such as overvoltage, undervoltage, overcurrent, overtemperature, and locked rotor8) Ultra high cost-effectiveness, economically efficient9) Acceptable customization

Typical applications:

Widely used in various small and medium-sized automation equipment and instruments, such as electronic processing equipment, 3C non-standard automation equipment, screw locking machines, wire stripping machines, winding machines, terminal machines, laser machines, marking machines, spray painting machines, small and medium-sized carving machines, automatic grabbing equipment, specialized CNC machine tools, packaging equipment and robots.

Product Overview

Control Port（B08B-PASK-1(LF)(SN) 8-bit pin）

Pin number	signal	function	Explanation
1	GND	Sensor power supply Ground	Sensor power supply ground, shared with main power supply ground
2	+5V	Sensor +5V power supply	Sensor +5V power supply, Output current <=30mA
3	BK	Brake signal	Invalid when suspended or connected to a high level (2.6V~24V) Connected to low-level brake effective (0V~0.7V)
4	F/R	Directional signal	CW\CCW High and low level polarity can be configured by software High level（2.6V~24V） Low level (0V~0.7V)
5	SV/PWM	Speed regulation signal	Analog speed control: 0.5V~5V, PWM frequency supports 1K~20K PWM speed regulation: Duty cycle polarity configurable 0~5% Full speed 5~95% Linear speed regulation 95~100% cease
6	PG	Speed signal	TTL-5V level，1 pulse /1 Antipolar / rotate
7	GND	Power input negative terminal	Negative pole of power input
8	VDD	Positive pole of power supply	Power input positive terminal，input voltage 9V~30Vdc

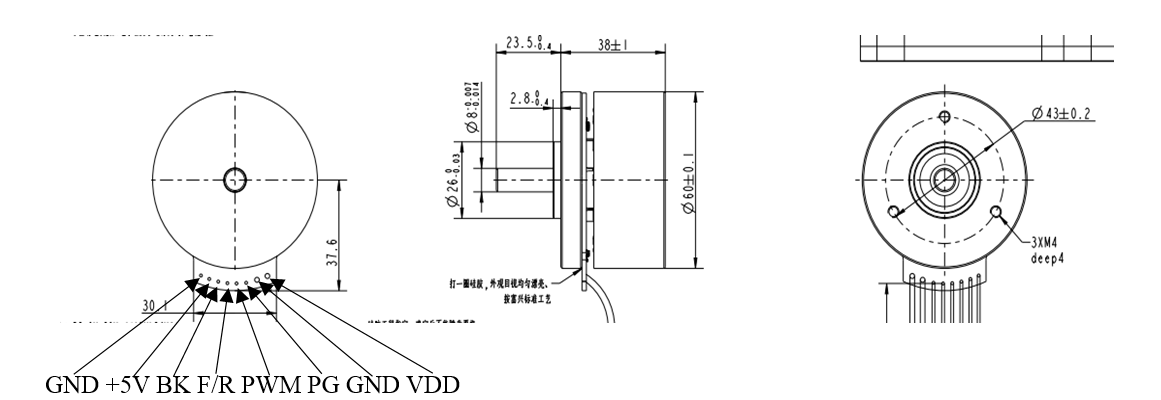

Motor size

Download

2D	784.34 KB
3D	1000.7 KB
iBLD60W-H-T External Rotor Series Driver User Manual- Sensory Square Wave	372.62 KB
