FL90BLW-56JM450K

Product Planetary gearbox

90mm outer rotor brushless motor with 56mm planetary gearbox

option:

BLDC Planetary Gear Moto （Ring Gear Material: Metal）

型号	规模
FL90BLW27/56JM450K	Φ56会加快器，许证电动机扭矩产值：4.0N.m~45N.m56mm OD Planetary Gearbox, Permissible Load Range: 4.0N.m~45N.m

配置设备虚设FL90BLW27-24V-37130A无刷直流电源电气(LD=27mm) FL90BLW27-24V-37130A BLDC Motor(LD=27mm)

减速比 Reduction ratio		3.6	4.25	5.33	13	15	18	23	28	43	52	61	72	96	121	154	187
加速级数 Number of gear trains		1	1	1	2	2	2	2	2	3	3	3	3	3	3	4	4
加速器长度(L) Length(L)	mm	40.3	40.3	40.3	53.8	53.8	53.8	53.8	53.8	67.2	67.2	67.2	67.2	67.2	67.2	80.6	80.6
额外转速 Rated speed	r/min	750	635	507	208	180	150	117	96	63	52	44	38	28	22	18	14
额外转矩 Rated torque	N.m	1.5	1.8	2	4.8	5.6	6.7	8.5	10	14	17	20	24	32	36	45	45
最大刹时许可负载Max. permissible load in a short time	N.m	12	12	12	36	36	36	36	36	72	72	72	72	72	72	90	90

使用辅助装备陈设FL90BLW40-48V-16170A无刷电流机电设备(LD=40mm) FL90BLW40-48V-16170A BLDC Motor(LD=40mm)

减速比 Reduction ratio		3.6	4.25	5.33	13	15	18	23	28	43	52	61	72	96
加速级数 Number of gear trains		1	1	1	2	2	2	2	2	3	3	3	3	3
加速器长度(L) Length(L)	mm	40.3	40.3	40.3	53.8	53.8	53.8	53.8	53.8	67.2	67.2	67.2	67.2	67.2
额外转速 Rated speed	r/min	464	393	313	128	111	93	73	60	39	32	27	23	17
额外转矩 Rated torque	N.m	3.1	3.7	4.2	10	12	14	18	22	30	37	43	45	45
最大刹时许可负载Max. permissible load in a short time	N.m	12	12	12	36	36	36	36	36	72	72	90	90	90

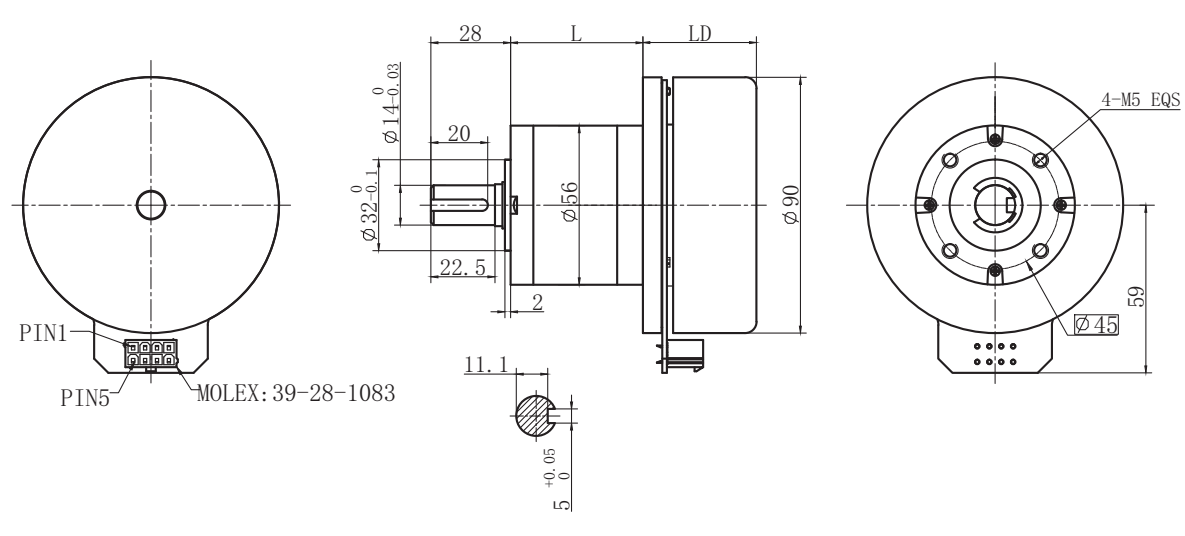

Motor size
