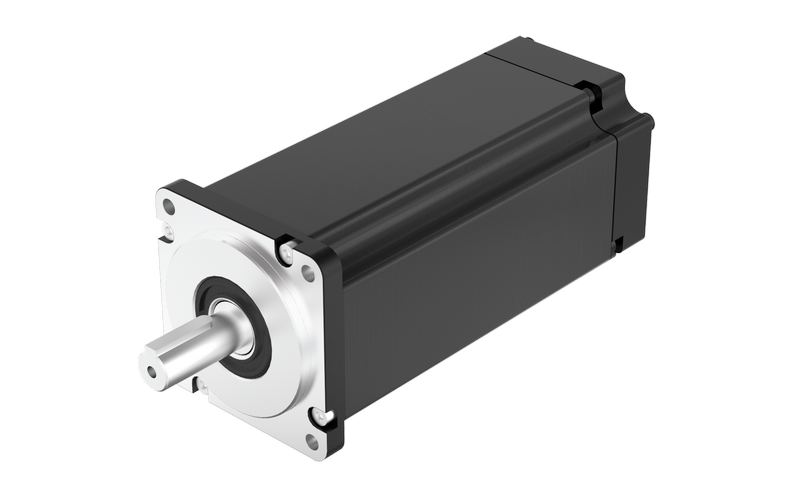

FL60SV

Product Servo Motor

60mm servo motor, 200-400W, 48VDC, 220VDC

option:

的特点（Characteristic）	技术参数(Parameter)
编号规则器案例(Encoder type)	1、光学商品伺服吃瓜网 Optical encoder2、磁识别码器 Magnetic encoder3、位移干式变压器Resolver微信备注名：多个分辩率要选，增减式、对于值式要选。Note: Multiple resolutions are available；Incremental and absolute values are available.
径向电流( Max radial force )	245N @ 20mm from the flange	问题基本原则Environmental conditions	充分利用环境摄氏度： -20℃~ +40℃；Temperature: -20℃~ +40℃利用情况下水分子含量：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)配置环境：阔别多年侵袭、可燃性有毒气体，油滴，尘沙，平均海拔≤1000m(1000~4000m，降额利用)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；存贮具体情况：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing).
支承负债( Max axial force )	98N
电绝缘官阶(Insulation Class)	Class B
安全防护网等级(Protection level)	IP65

案例(Model）	模块(Unit)	FL60SV20			FL60SV40
30%瓦数(Rated power)Pn	W	200			400
增加电阻(Rated voltage)U	VDC	48		220	48		220
额外的转速比(Rated speed) nn	RPM	3000		3000	3000		3000
更多传动比(Rated torque)Tn	N·m	0.64		0.64	1.27		1.27
木制托盘电流大小(Rated current) In	A	6		1.2	12		2.4
上限速比(Maximum speed) nmax	RPM	5000		6000	5000		6000
明显传动比(Maximum torque)Tm	N·m	1.92		1.92	3.81		3.81
比较大交流电(Maximum current)Im	A	18		3.6	36		7.2
电阻器(Line to line resistance) RL	Ω	0.38		9.35	0.23		3.46
电感(Line to line inductance) LL	mH	0.68		17	0.3		7.14
反电势数值(BackEMF) Ke	V/Krpm	6.5		32	6.5		32
电动机扭矩比率(Torque constant) Kt	Nm/A	0.107		0.53	0.107		0.53
电力设备时常数(Electrical time constant) τe	ms	1.79		1.81	1.3		2.06
仪器那时候常数（Mechanical time constant) τm	ms	0.85		21.01	0.52		12.96
弹出惯量(Rotor inertia) Jm0	Kg.cm²	0.15		0.15	0.25		0.25
弹出惯量带驻车制动阀(Rotor inertia with brake) Jm1	Kg.cm²	0.15		0.15	0.25		0.25
极数(Number of poles)		10		10	10		10
简码器(Encoder)	2500ppr光学编号器（增长量式）2500p/rev incremental encoder
产品设备尺寸(Motor length) L1	mm	86.5	79.5		106	99
手机总长度带汽车齿轮箱(Motor length with brake) L2	mm	123	116		142.5	135.5
权重 (Weight)	Kg	0.95	0.9		1.35	1.3
图像带行车齿轮箱(Weight with brake)	Kg	1.35	1.3		1.85	1.8

编码器接线色彩界说见图纸。

改款机电工程专业够采用雇主需用高端定制。

The motor can be designed &manufactured with customized request.
