特征提要 ( General Specifications )
| 绕阻毗连体例 ( Winding Type ) | 星形 ( Star connection) |
| 霍尔遍布层面 ( Hall Effect Angle ) | 120度电斜度 ( Electrical Angle of 120 degree) |
| 径向间隙 ( Radial Play ) | 0.02mm@450g |
| 支承空隔 ( Axial Play ) | 0.08mm@450g |
| 最大的径向阻抗 ( Max radial force ) | 10N 距卡箍10mm ( 10mm From the flange) |
| 比较大支承阻抗 ( Max axial force ) | 2N |
| 介电抗压强度 ( Dielectric Strength ) | 600VAC/1S |
| 电绝缘阻值 ( Insulation Resistance ) | 100MΩ, 500VDC |
| 状态温差 ( Ambient Temperature ) | -20°C ~ +50°C |
| 隔热品阶 (Insulation Class) | Class B |
接线申明(Electric Connection)
| 生成线主要参数Type | 生成线色彩搭配Color | 功效与作用Functions |
| UL1007 AWG26 | 黄 (Yellow ) | 霍尔外接电源正 ( Vcc ) |
| 深蓝色 ( Blue ) | 霍尔 U ( Hu ) |
| 橘色 ( Orange ) | 霍尔 V ( Hv ) |
| 棕红色 ( Brown ) | 霍尔 W ( Hw ) |
| 灰黑色 ( White ) | 霍尔24v电源负 ( GND ) |
| UL1007 AWG26 | 精彩纷呈 ( Green ) | U相 ( Phase U ) |
| 暗红色 ( Red) | V相 ( Phase V ) |
| 玄色 ( Black) | W相 ( Phase W ) |
机电能 (Electrical Specifications)
| 单 位 (Unit) | FL33BL38-24V-3007A | FL33BL80-24V-7840A-S | FL33BL80-48V-10040AS |
| 极数 ( Number of poles ) |
|
| 4 |
|
| 相数 ( Number of phases ) |
|
| 3 |
|
| 减半输出功率 ( Rated voltage ) | VDC | 24 | 24 | 48 |
| 30%力矩 ( Rated torque) | mN.m | 22 | 50 | 40 |
| 维持行驶电动机扭矩 ( Continuous stall torque) | mN.m | 26 | 60 | 48 |
| 额外的数率 ( Rated speed ) | RPM | 3000 | 7800 | 10000 |
| 减半工作功率 ( Rated power ) | W | 7 | 40 | 40 |
| 基线力矩 ( Peak torque ) | mN.m | 66 | 150 | 120 |
| 顶值瞬时电流 ( Peak current ) | A | 1.5 | 5.6 | 2.9 |
| 线电阻功率 ( Line to line resistance ) | ohms@20℃ | 14.2 | 0.86 | 2.3 |
| 线电感 ( Line to line inductance ) | mH | 7 | 0.55 | 1.45 |
| 传动比常数 ( Torque constant ) | mN.m/A | 46.3 | 27 | 41.8 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 3.43 | 2.0 | 3.1 |
| 移动惯量 ( Rotor inertia ) | g.cm2 | 7.95 | 23.55 | 23.55 |
| 外壳总长 ( Motor length ) L | mm | 38 | 80 | 80 |
| 量用 ( Weight ) | Kg | 0.085 | 0.2 | 0.2 |
新款上市机电工程专业并能是以玩家要来样加工。
The motor can be designed &manufactured with customized request.
Motor size
Parameter

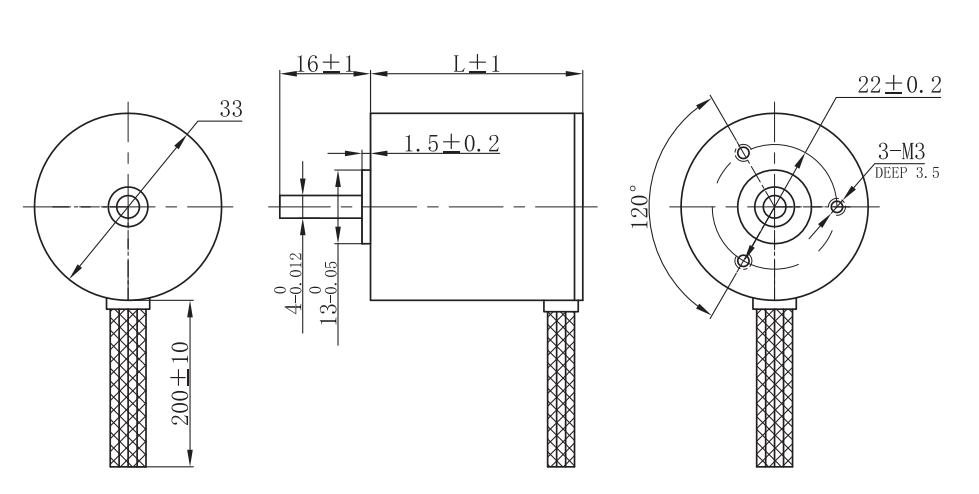

Overall Dimensions
