Cooperation| Item | Specifications |
| 步距角精密度Step Angle Accuracy | ±7% (整步，轻载full step, no load) |
| 电容公役Resistance Accuracy | ±10% |
| 电感公役Inductance Accuracy | ±20% |
| 升温Temperature Rise | 65K Max. ambient temperature 40。C65K 条件温暖40℃ |
| 条件室温Ambient Temperature | -10。C~+50。C |
| 绝缘带阻值Insulation Resistance | 100MΩMin. ,500VDC |
| 隔绝品阶Insulation Class | Class E |
| 介电密度Dielectric Strength | 650VAC for one second, leakage current 1mA650VAC 一秒钟， 泄电电流值1mA |
| 形号Model | 步距角Step Angle(Deg.) | 相数No. ofPhase | 电压电流Voltage(V) | 相电流值Current/Phase(A) | 相阻值Resistance/Phase(ohms) | 相电感Inductance/Phase(mH) | 牵入扭矩Pull-in Torque (g.cm)5VDC | 大牵入频率和次数Max. Pull-In Rate (pps)No Load,5VDC | 始终坚持扭力HoldingTorque(g.cm) | 提速比Ratio | 使用Weight (g) |

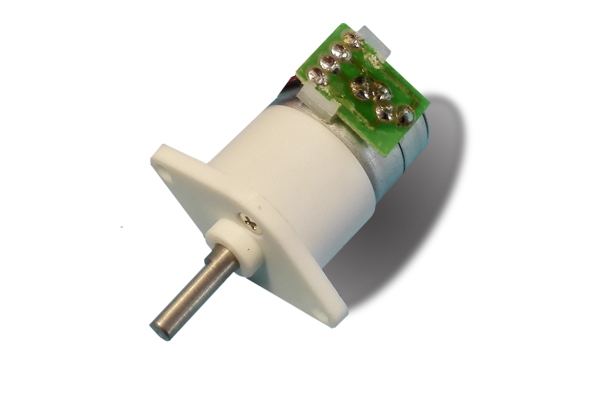

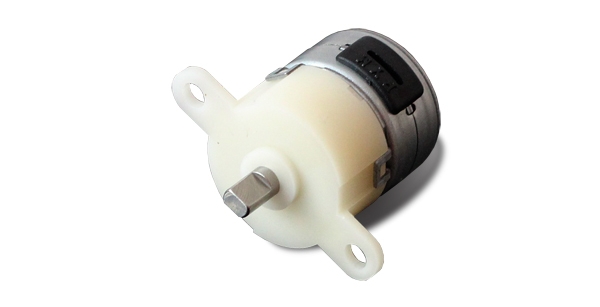

| PMG1550-01 | 18/50 | 2 | 5 | 0.5 | 10 | 2.3 | 360 @200pps | 1280 | 1350 | 1:50 | 12.2 |
| PMG1550-03 | 18/50 | 2 | 5 | 0.5 | 10 | 2.8 | 140@200pps | 1150 | 2000 | 1:50 | 13 |
| PMG15102-01 | 18/102.5 | 2 | 5 | 0.5 | 10 | 2.3 | 350@200pps | 1000 | 2000 | 1:102.5 | 12.2 |
该电气自动化要是以买家必须要 来样加工。
The motor can be designed &manufactured with customized request.
