| 症状提要 ( General Specifications ) |
| 吃瓜网
绕线毗连体例 ( Winding Type ) | 星形 ( Star connection) |
| 霍尔散布谣言弯度 ( Hall Effect Angle ) | 120度电角度看 ( Electrical Angle of 120 degree) |
| 径向间隙 ( Radial Play ) | 0.02mm@450g |
| 轴径接缝处 ( Axial Play ) | 0.08mm@450g |
| 最大程度径向环境下 ( Max radial force ) | 15N 距法兰片10mm ( 10mm From the flange) |
| 很大轴上装载 ( Max axial force ) | 10N |
| 介电力度 ( Dielectric Strength ) | 600VAC/1S |
| 接地电容 ( Insulation Resistance ) | 100MΩ, 500VDC |
| 状态温度因素 ( Ambient Temperature ) | -20°C ~ +50°C |
| 绝缘电阻等级 (Insulation Class) | Class B |
| 接线柱声明范文(Electric Connection) |
| 生成线型号规格Type | 导入线冷暖色Color | 药用价值Functions |
|
| UL1332 AWG22 | 红 ( Red ) | 外接电源正 ( Vcc ) |
| 玄色 ( Black ) | 电原负 ( GND ) |
| UL1430 AWG26 | 精彩纷呈 ( Green ) | 转变规范（Rotating Direction）CW/CCW |
|
| 鲜红色 ( White ) | PWM控速（Speed Control） |
| 紫色 ( Blue ) | 后刹（Brake） |
| 茶色 ( Yellow ) | PG转速比旌旗灯号发应（Tacho out） |
机电能 (Electrical Specifications)
| 单 位 (Unit) | FL42CBL60-24V-5943-IE | FL42CBL66-24V-3031A-IE |
| 极数 ( Number of poles ) |
| 4 |
| 相数 ( Number of phases ) |
| 3 |
| 超额扭矩 ( Rated torque) | mN.m | 68 | 100 |
| 延续运行业务惯量 ( Continuous stall torque) | mN.m | 81.6 | 120 |
| 增加浓度 ( Rated speed ) | RPM | 5900 | 3000 |
| 特别公率 ( Rated power ) | W | 43 | 31 |
| 谷值电动机扭矩 ( Peak torque ) | mN.m | 92 | 200 |
| 最高值瞬时电流 ( Peak current ) | A | 3 | 3 |
| 线阻值 ( Line to line resistance ) | ohms@20℃ | 0.82 | 2.5 |
| 线电感 ( Line to line inductance ) | mH | 1.2 | 3.3 |
| 扭矩常数 ( Torque constant ) | mN.m/A | 33.75 | 65 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 2.5 | 4.82 |
| 运转惯量 ( Rotor inertia ) | g.cm2 | 44 | 55 |
| 屏幕总长 ( Motor length ) L | mm | 60 | 66 |
| 权重 ( Weight ) | Kg | 0.35 | 0.44 |
这一款机械设备可以依照企业需用私人订制。
The motor can be designed &manufactured with customized request.

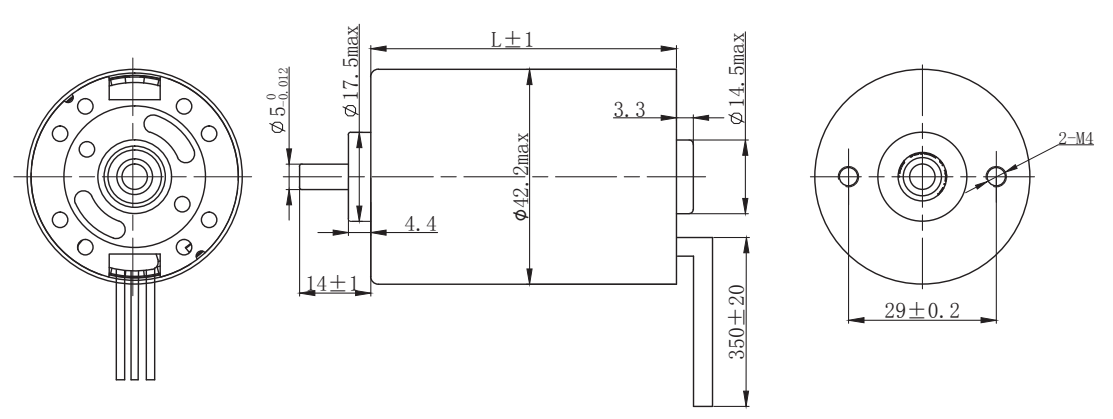

Motor size
Download
|
FL42CBL60-24V-5943-IE
|
293.72 KB
|
|
|
FL42CBL66-24V-3031A-IE
|
234.32 KB
|
|
Parameter
Overall Dimensions
