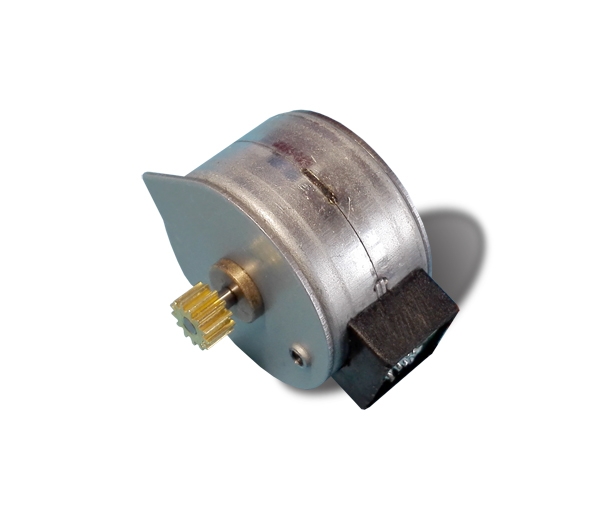

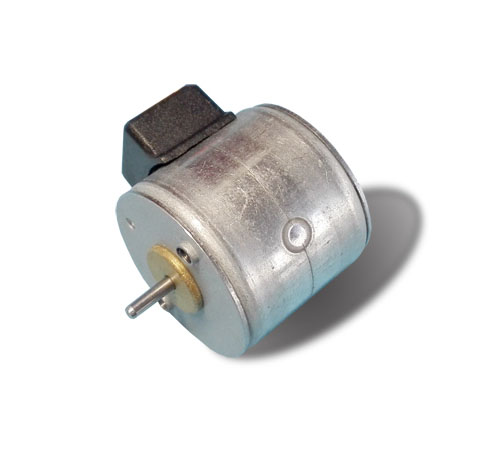

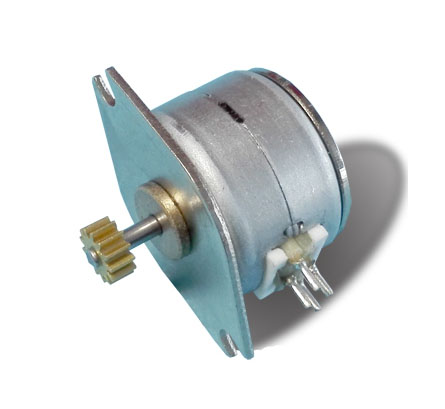

Cooperation| Item | Specifications |
| 步距角可靠性强，精密度Step Angle Accuracy | ±8% (整步负载full step, no load) |
| 电阻器公役Resistance Accuracy | ±10% |
| 电感公役Inductance Accuracy | ±20% |
| 温度升降的Temperature Rise | 80。C Max.(减半交流电，2雷同电rated current,2 phase on) |
| 事情环境温度Ambient Temperature | -20℃+50℃ |
| 电绝缘内阻Insulation Resistance | 100MΩMin. ,500VDC |
| 介电硬度Dielectric Strength | 500VAC/1s |
| 径向间距Shaft Radial Play | 0.06Max. (450 g-load) |
| 支承间隙Shaft Axial Play | 0.08Max. (450 g-load) |
| 应用Model | 步距角Step Angle(Deg.) | 相数No. ofPhase | 电阻Voltage (V) | 相电流值Current/Phase(A) | 相电阻器Resistance/Phase(ohms) | 坚持什么扭力HoldingTorque(g.cm) | 确定载荷DetentTorque(g.cm) | 定子和转子惯量RotorInertia(g.cm^2) | 接线方法图WireDiagram |
| PM1020L03 | 18 | 2 | 3.3 | 0.22 | 15 | 16.3 | 10 | <1 | A |
| PM1020L06-1 | 18 | 2 | 3.3 | 0.22 | 15 | 16.3 | 10 | A | |
| PM1512-01 | 18 | 2 | 12 | 0.04 | 300 | 40 | 10 | A | |
| PM1512-02 | 18 | 2 | 5 | 0.5 | 10 | 27 | 6 | c | |
| PM2018-01 | 18 | 4 | 12 | 0.24 | 50 | 80 | 25 | B | |
| PM2018-02 | 18 | 2 | 5 | 0.5 | 10 | 60 | 20 | A | |
| PM2516-01 | 15 | 4 | 9 | 0.45 | 20 | 140 | 75 | B | |
| PM2515-01 | 7.5 | 2 | 12 | 0.24 | 50 | 170 | 45 | A | |
| PM2515-02 | 7.5 | 4 | 12 | 0.25 | 50 | 160 | 35 | B |
新款上市建筑机电才可以可以依照顾客要有个性。
The motor can be designed &manufactured with customized request.
