| +5V | F/R | SV | PG | GND | GND | +Vp |
| O | O | O | O | O | O | O |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| 特色提要 ( General Specifications ) |
| 吃瓜网
绕线毗连体例 ( Winding Type ) | 三边形形 ( Delta connection) |
| 霍尔造谣多角度 ( Hall Effect Angle ) | 120度电弯度 ( Electrical Angle of 120 degree) |
| 径向隙缝 ( Radial Play ) | 0.025mm@460g |
| 轴上空隔 ( Axial Play ) | 0.08mm@4000g |
| 最大程度径向负债 ( Max radial force ) | 10N 距法兰盘10mm ( 10mm From the flange) |
| 极限支承负债 ( Max axial force ) | 10N |
| 介电的强度 ( Dielectric Strength ) | 600VAC/1S |
| 绝缘性热敏电阻 ( Insulation Resistance ) | 100MΩ, 500VDC |
| 情况发生平均温度 ( Ambient Temperature ) | -20°C ~ +50°C |
| 耐压品阶 (Insulation Class) | Class B |
| 接线方法表明(Electric Connection) |
| Pin No |
| 药用价值Functions |
|
| 1 | +5V | 电压降填写(VOLTAGE OUTPUT) |
| 2 | F/R | 旋转有节制(ROTATING DIRECTION) |
| 3 | SV | 变频调速电阻0—5VDC (SPEED VOLTAGE 0—5VDC) |
| 4 | PG | 频率脉冲造成的输进(TTL) (SPEED PULSE OUTPUT(TTL) |
| 5 | GND | 的接地(GND) |
| 6 | GND | 地线(GND) |
| 7 | +Vp | +24VDC(DC POWER INPUT +24VDC) |
机电能 (Electrical Specifications)
| 单 位 (Unit) | FL42BLS01-IE | FL42BLS02-IE | FL42BLS03-IE | FL42BLS04-IE |
| 极数 ( Number of poles ) |
| 8 |
| 相数 ( Number of phases ) |
| 3 |
| 加倍电流值 ( Rated voltage ) | VDC | 24 |
| 增加惯量 ( Rated torque) | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| 长期机器运行传动比 ( Continuous stall torque) | N.m | 0.075 | 0.15 | 0.22 | 0.3 |
| 加倍波特率 ( Rated speed ) | RPM | 4000 | 4000 | 4000 | 4000 |
| 加倍公率 ( Rated power ) | W | 26 | 52 | 78 | 104 |
| 阀值电动机扭矩 ( Peak torque ) | N.m | 0.11 | 0.18 | 0.28 | 0.28 |
| 阀值功率 ( Peak current ) | A | 3.5 | 5.0 | 7.5 | 7.5 |
| 线内阻 ( Line to line resistance ) | ohms@20℃ | 1.5 | 0.8 | 0.43 | 0.3 |
| 线电感 ( Line to line inductance ) | mH | 2.1 | 1.2 | 0.71 | 0.5 |
| 惯量常数 ( Torque constant ) | N.m/A | 0.033 | 0.036 | 0.037 | 0.035 |
| 反电势 ( Back EMF ) | Vrms/KRPM | 2.45 | 2.71 | 2.74 | 2.62 |
| 上去惯量 ( Rotor inertia ) | g.cm2 | 24 | 48 | 72 | 96 |

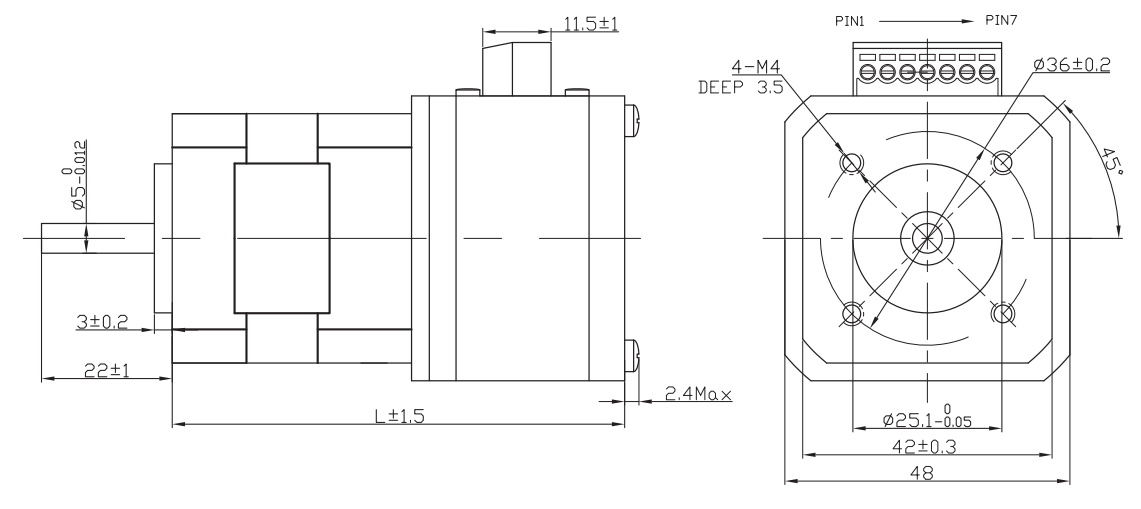

| 手机间距 ( Motor length ) L | mm | 77 | 97 | 137 | 157 |
| 参量 ( Weight ) | Kg | 0.45 | 0.6 | 0.8 | 0.95 |
这一款电气自动化能假设按照合作方都要定制网站。
The motor can be designed &manufactured with customized request.
