热情接待协同合作| Item | Specifications |
| 步距角误差Step Angle Accuracy | ±7% (整步，轻载full step, no load) |
| 电阻值公役Resistance Accuracy | ±10% |
| 电感公役Inductance Accuracy | ±20% |
| 表面温度Temperature Rise | 65K Max. ambient temperature 40。C65K 具体情况温度因素40℃ |
| 实际情况工作温度Ambient Temperature | -10。C~+50。C |
| 绝缘性电阻器Insulation Resistance | 100MΩMin. ,500VDC |
| 接地品质Insulation Class | Class E |
| 介电密度Dielectric Strength | 650VAC for one second, leakage current 1mA650VAC 五秒， 泄电直流电1mA |

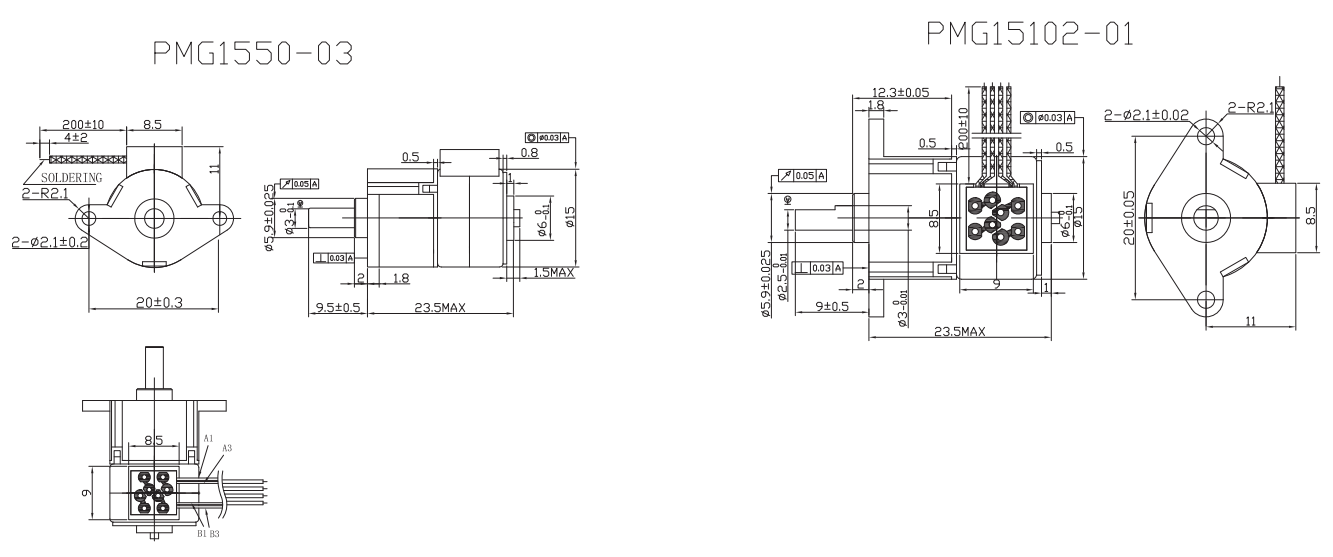

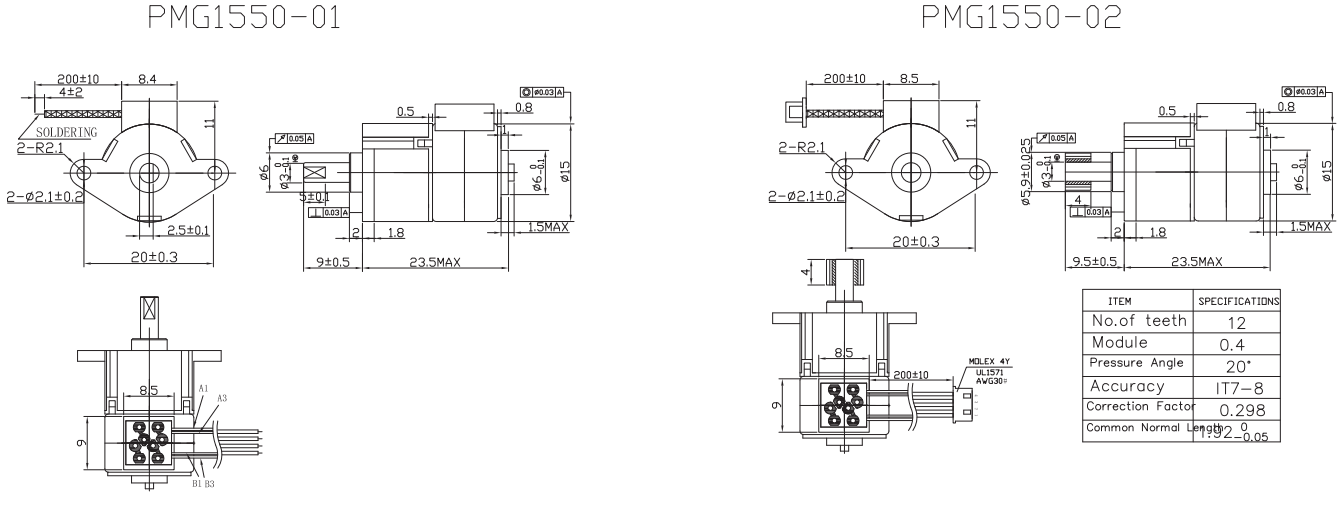

| 型号规格Model | 步距角Step Angle(Deg.) | 相数No. ofPhase | 交流电压Voltage(V) | 相瞬时电流Current/Phase(A) | 相电容Resistance/Phase(ohms) | 相电感Inductance/Phase(mH) | 牵入力距Pull-in Torque (g.cm)5VDC | 极大牵入频率Max. Pull-In Rate (pps)No Load,5VDC | 坚定扭距HoldingTorque(g.cm) | 加速度比Ratio | 权重Weight (g) |
| PMG1550-01 | 18/50 | 2 | 5 | 0.5 | 10 | 2.3 | 360 @200pps | 1280 | 1350 | 1:50 | 12.2 |
| PMG1550-03 | 18/50 | 2 | 5 | 0.5 | 10 | 2.8 | 140@200pps | 1150 | 2000 | 1:50 | 13 |
| PMG15102-01 | 18/102.5 | 2 | 5 | 0.5 | 10 | 2.3 | 350@200pps | 1000 | 2000 | 1:102.5 | 12.2 |
改款电气自动化能明确用户必须 定制开发。
The motor can be designed &manufactured with customized request.
