机电工程轴径Motor Shaft diameter

3mm,4mm,5mm,6mm,6.35mm,7mm

Suitable for shaft   diameter 3mm,4mm,5mm,6mm,6.35mm,7mm

内存平均温度Storage Temperature

-40℃～85℃

保举人物情形

Environmental   conditions

场馆

Application

无风蚀性，易燃性，易爆，导电性实验室气体，粘液和粉层No corrosive,   flammable, explosive, conductive gas, liquid and dust.

日常任务温差Temperature

-25℃～80℃

干湿度

Humidity

不超出85% RH

No more than 85% RH

电气开关

产品参数Electrical Parameter

供气电流值Supply Voltage

5VDC±0.5V

     耗损感应电流Current   Consumption

≤60mA

差分旌旗灯号读取

Differential   Single Output

5V,GND,   A+/A-,B+/B-,Z+/Z-,

  进入电平体例  Output Level mode

TTL电平(TTL Compatible)

数据库索引旌旗灯号：宽度  Index Width

1/4T

差分读取电压电流

Differential   Output Voltage

高电平填写电压值(VoH) ≥3.4V

High Level   Output (VoH) ≥3.4V

低电平輸入电阻(VoL) ≤0.5V

Low Level Output   (VoL) ≤0.5V

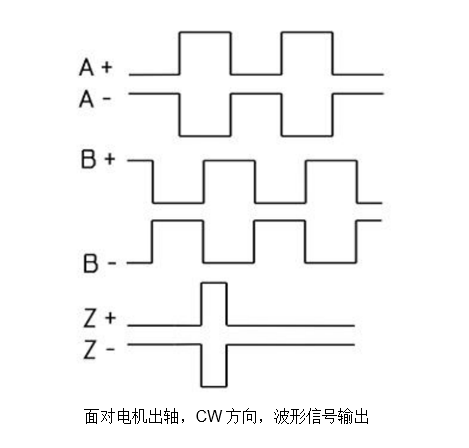

差分旌旗灯号投入新格局

Differential   Signal Output Format

线能够26C31

Line Drive 26C31

可选择分辩率(象限Unit：线/CPR)

Optional   Resolution

500线/1000线/2000线

占空比 Duty Cycle

50% ±10%

相位差 Phase Difference

 90°±10°

遥相呼应周期Frequency Response

≤220KHz        侧重：旌旗灯号频度 = (转数(Rpm)×线数)/60

Note: The signal   frequency = (Speed(Rpm)  *  number of Lines)/60
