热情接待共建| 表现(Characteristic） | 技术参数(Parameter) | ||
| 商品代码器示例(Encoder type) | 1、光电科技代码器 Optical encoder2、磁打码器 Magnetic encoder3、逆转配电变压器Resolver备注栏：多种多样分辩率待选，增长式、相值式待选。Note: Multiple resolutions are available；Incremental and absolute values are available. | ||
| 径向载荷(Max radial force ) | 75N@20mm from the flange | 事情的前提Environmental conditions | 利用现状热度： -20℃~ +40℃；Temperature: -20℃~ +40℃根据情况发生温湿度：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)仪器症状：远离破坏、可燃性气态，油滴，尘烟，海拔有≤1000m(1000~4000m，降额合理利用)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；数据存储情況：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 载荷载荷(Max axial force) | 15N | ||
| 绝缘电阻品质(Insulation Class) | B | ||
| 防护衣品阶(Protection level) | IP30 | ||
| 单元测试卷(Unit) | FL60SC30 | FL60SC40 | |
| 相瞬时电流 (Phase current) | A | 6.0 | 5.6 |
| 保证传动比 (Holding torque) | N·m | 3.0 | 3.6 |
| 很高轉速 (Speed ) | rpm | 1800 | 1800 |
| 编码查询器 (Encoder) | 1000cpr光电技术增长量式打码器1000cpr incremental optical encoder | ||
| 跳出惯量 (Rotor inertia) | g.cm2 | 800 | 860 |

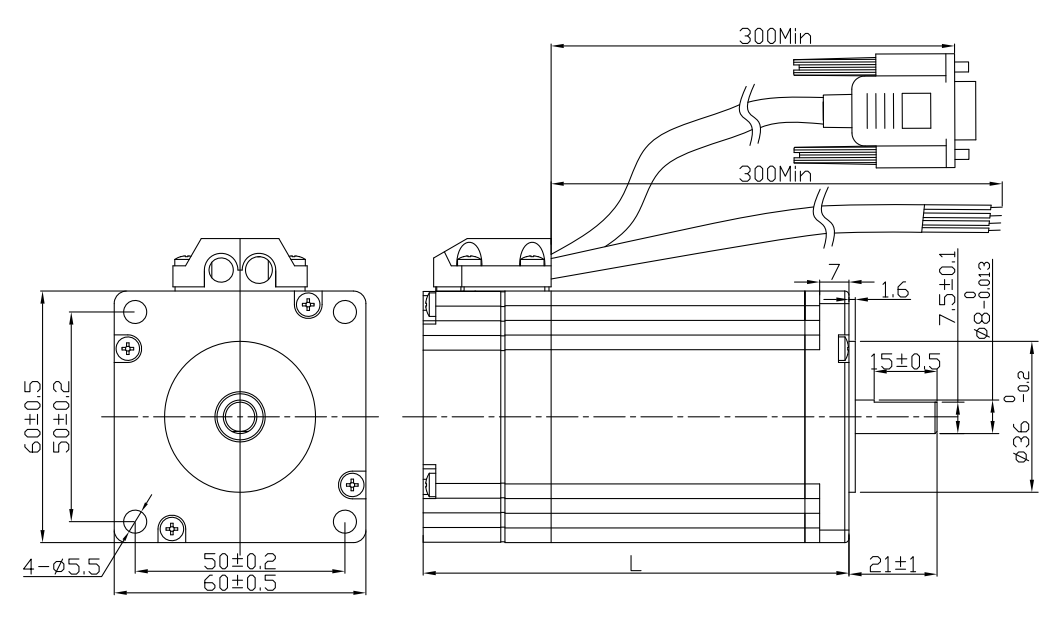

| 车身的长度 (Motor Length) L | mm | 103 | 109 |
| 参量 (Weight ) | Kg | 1.4 | 1.6 |
| 数字序号No. | 引出来线色彩明度Lead Color | 引入线产品型号Lead Gauge | 功较Function | 声明范文Description |
| 3 | 红灰黑色(Red/White) | CableThree rows of15PIN D-SUB | GND | Signal Power negative |
| 2 | 灰白色(Red) | VCC:+5VDC | Signal Power positive | |
| 13 | 粉色(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). | |
| 1 | 蓝玄色(Blue/Black) | EA+ | ||
| 12 | 玄色(Black) | EB- | ||
| 11 | 黑黑色（Black/White) | EB+ | ||
| 1 | 玄色(Black) | CableUL2464AWG20 | A相(Phase A) | |
| 2 | 绿色环保(Green) | C相(Phase C) | ||
| 3 | 乳白色(Red) | B相(Phase B) | ||
| 4 | 蓝颜色(Blue) | D相(Phase D) |
这款建筑机电并能决定客服应该私人订制。
The motor can be designed &manufactured with customized request.
| FL60SC30 | 283.35 KB |
|
| FL60SC40 | 281.83 KB |
|
