FL48CBL
结果中间商 成本型无刷电气自动化

FL48CBL

Φ48mm 经济型无刷机电,24VDC, 3000RPM
选件:
  • FL48CBL 编号器
  • FL48CBL 齿圈箱
  • FL48CBL 接插件机
  • FL48CBL 剎车

特征提要 ( General Specifications )

绕阻毗连体例 ( Winding Type )星形 ( Star connection)
霍尔打击想法 ( Hall Effect Angle )120度电的视角 ( Electrical Angle of 120 degree)
径向间隙 ( Radial Play )0.02mm@450g
支承间距 ( Axial Play )0.08mm@450g
最大程度径向负载电阻 ( Max radial force )15N  距活套法兰10mm ( 10mm From the flange)
最高心轴根据 ( Max axial force )10N
介电承载力 ( Dielectric Strength )  600VAC/1S
电绝缘热敏电阻 ( Insulation Resistance )100MΩ, 500VDC
情况下水温 ( Ambient Temperature )-20°C   ~   +50°C
绝缘性品阶 (Insulation Class)Class B


接线申明(Electric Connection)

引入线类型Type引出来线相关Color功能Functions
UL1430 AWG26白色的  ( Red)霍尔电源开关正  ( Vcc )
黄色  ( Blue )霍尔 U ( Hu )
深绿色  ( Green )霍尔 V ( Hv )
白色的  ( White )霍尔 W ( Hw )
玄色  ( Black)霍尔电原负 ( GND )
UL1430 AWG20黄白色  (Yellow )U相 ( Phase U )
灰黑色  ( Red)V相 ( Phase V )
玄色  ( Black)W相 ( Phase W )

机电能 (Electrical Specifications)


单 位 (Unit)FL48CBL68-24V-3060A
极数  ( Number of poles )
10
相数  ( Number of phases )
3
超额工作电压 ( Rated  voltage )         VDC24
特别转距 ( Rated torque)        mN.m180
不断地工作起动转矩 ( Continuous stall torque)mN.m216
减半传输速度 ( Rated speed )         RPM3000
三倍耗油率 ( Rated power )         W60
阀值电动机扭矩 ( Peak torque )          mN.m540
阀值功率 ( Peak current )         A9.4
线阻值 ( Line to line resistance )              ohms@20℃ 0.7
线电感 ( Line to line inductance )              mH  0.7
传动比常数 ( Torque constant )         mN.m/A58
反电势 ( Back EMF )           Vrms/KRPM4.3
跳出惯量 ( Rotor inertia )           g.cm280
木材粉碎机机身高度 ( Motor length )       Lmm68
量用 ( Weight )               Kg0.5


这款机械设备就能够根据客服要求私人定制。

The motor can be designed &manufactured with customized request.

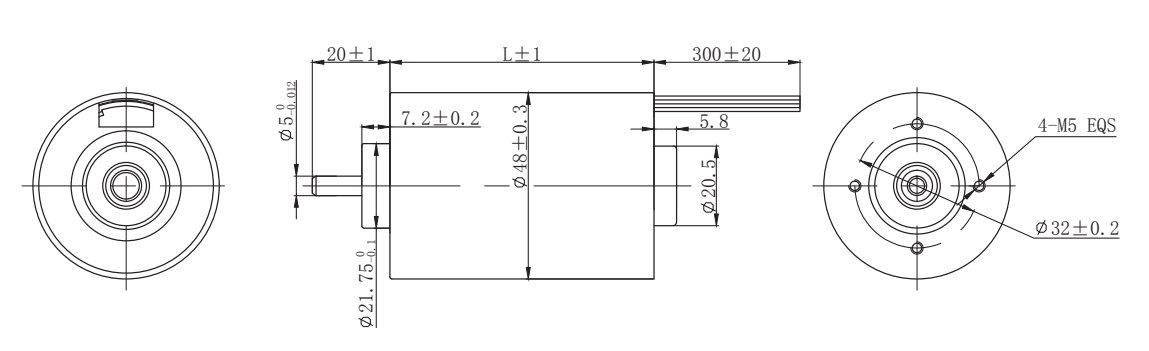

机电尺寸


材料下载
FL48CBL68-24V-3060A 185.92 KB
