约见协同作战| 特征（Characteristic） | 参数(Parameter) | ||
| 数字器范本(Encoder type) | 1、光电产品商品编号器 Optical encoder2、磁编码查询器 Magnetic encoder3、弯曲电压器Resolver微信备注：多分辩率先选，增长式、对比值式先选。Note: Multiple resolutions are available；Incremental and absolute values are available. | ||
| 径向额定负载(Max radial force ) | 130N@20mm from the flange | 目的目的Environmental conditions | 采取状况温差： -20℃~ +40℃；Temperature: -20℃~ +40℃合理利用时候对环境湿度的：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)传动装置环境：事隔浸蚀、可燃性有机废气气体，油滴，尘灰，地形≤1000m(1000~4000m，降额借助)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；随意调节情形：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 轴径负债(Max axial force) | 36N | ||
| 隔绝品阶(Insulation Class) | B | ||
| 安全防护网品阶(Protection level) | IP30 | ||
| 单元测试卷(Unit) | FL86SC40 | FL86SC85 | FL86SC120 | |
| 相电流大小 (Phase current) | A | 6 | 6 | 6 |

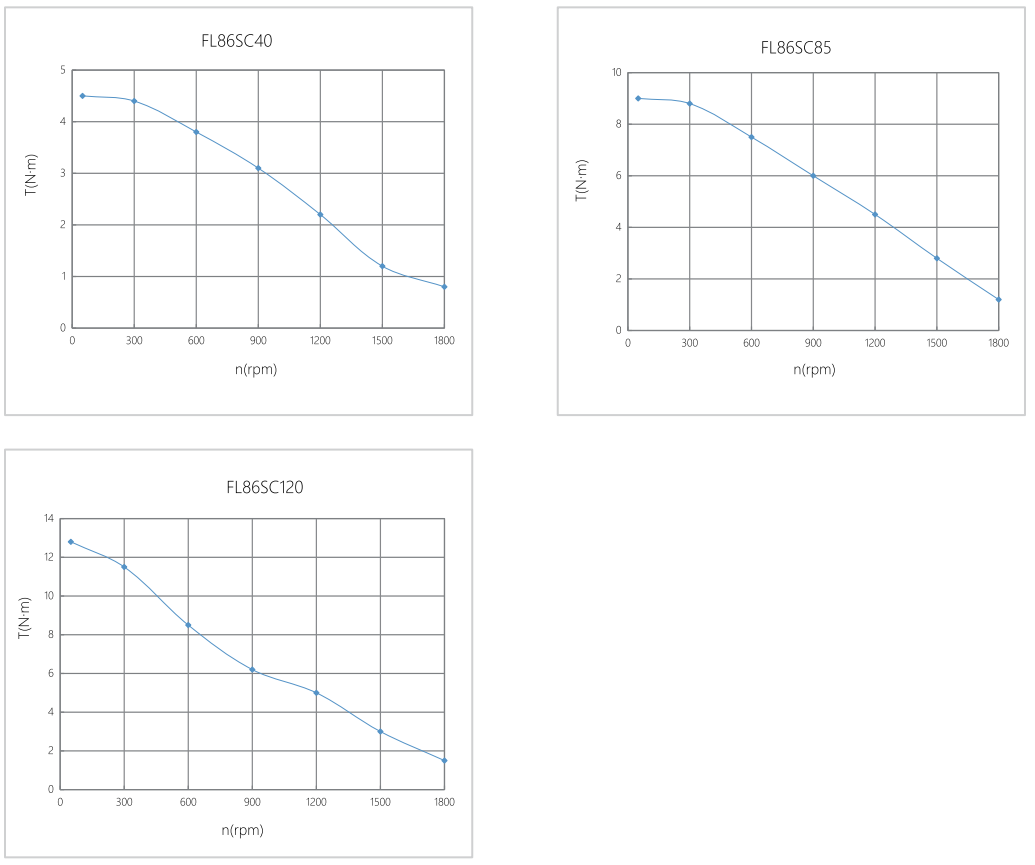

| 坚定电动机扭矩 (Holding torque) | N·m | 4 | 8.5 | 12 |
| 上限轉速 (Speed ) | rpm | 1800 | 1800 | 1800 |
| 编号规则器 (Encoder) | 1000cpr光电产品增加量式商品伺服吃瓜网 1000cpr incremental optical encoder | |||
| 运转惯量 (Rotor inertia) | g.cm2 | 1400 | 2700 | 4000 |

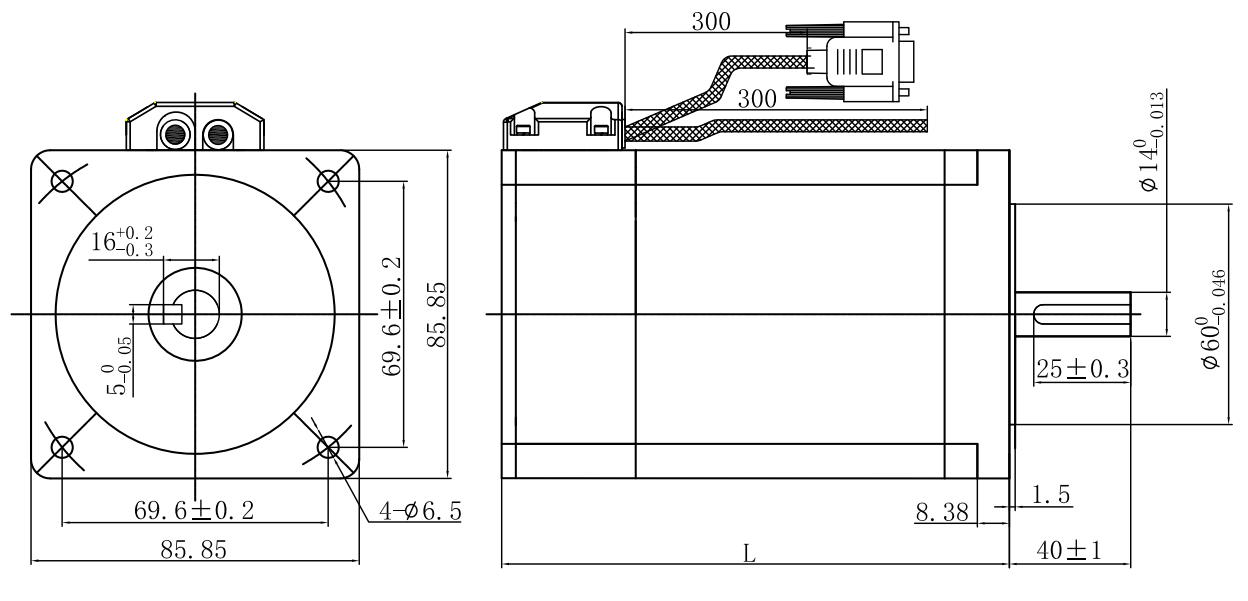

| 后盖厚度 (Motor Length) L | mm | 96 | 133 | 171 |
| 食用量 (Weight ) | Kg | 2.5 | 3.8 | 5.5 |
| 号码No. | 生成线色彩Lead Color | 产生线型号查询Lead Gauge | 副作用Function | 声明范文Description |
| 3 | 红黄白色(Red/White) | Three rows of15PIN D-SUB | GND | Signal Power negative |
| 2 | 黄色(Red) | VCC:+5VDC | Signal Power positive | |
| 13 | 红色(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). | |
| 1 | 蓝玄色(Blue/Black) | EA+ | ||
| 12 | 玄色(Black) | EB- | ||
| 11 | 黑暗红色（Black/White) | EB+ | ||
| 1 | 黄白色(Yellow) | YGZF-S 4*0.75 Cable | A相(Phase A) | |
| 2 | 绿色健康(Green) | C相(Phase C) | ||
| 3 | 黄色(Red) | B相(Phase B) | ||
| 4 | 玄色(Blake) | D相(Phase D) |
这款机电工程能够依照规定企业客户需求高端定制。
The motor can be designed &manufactured with customized request.
| FL86SC85 | 239.54 KB |
|
| FL86SC40 | 239.77 KB |
|
| FL86SC120 | 239.76 KB |
|
