传统手工艺技术指标
的样子的尺寸
产品使用
洽谈分工协作| 共同点(Characteristic） | 数据(Parameter) | ||
| 编写代码器实例(Encoder type) | 1、光电技术商品编码器原理 Optical encoder2、磁标识号器 Magnetic encoder3、位移配电变压器Resolver微信备注：多种多样分辩率待选，增加量式、相对应值式待选。Note: Multiple resolutions are available；Incremental and absolute values are available. | ||
| 径向额定负载(Max radial force ) | 75N@20mm from the flange | 情况发生前提Environmental conditions | 使用状态溫度： -20℃~ +40℃；Temperature: -20℃~ +40℃再生利用情況环境湿度：≤90%RH（无凝露）；Relative humidity: ≤90%RH(No dewing)仪器问题：一别风蚀、可燃性有机废气气体，油滴，埃尘，海拔高度≤1000m(1000~4000m，降额凭借)；Installation environment: Far away active gas,Combustible gas, oil drop, ash.altitude≤1000m(1000~4000m，Derating use)；储存状态：-20℃~ +60℃，≤85%RH（无凝露）。Storage Condition: -20℃~ +60℃，≤85%RH(No dewing). |
| 心轴负债(Max axial force) | 15N | ||
| 隔绝品阶(Insulation Class) | B | ||
| 防御等级(Protection level) | IP30 | ||
| 机组(Unit) | FL57SC10 | FL57SC22 | |
| 相电压电流 (Phase current) | A | 6.0 | 5.6 |

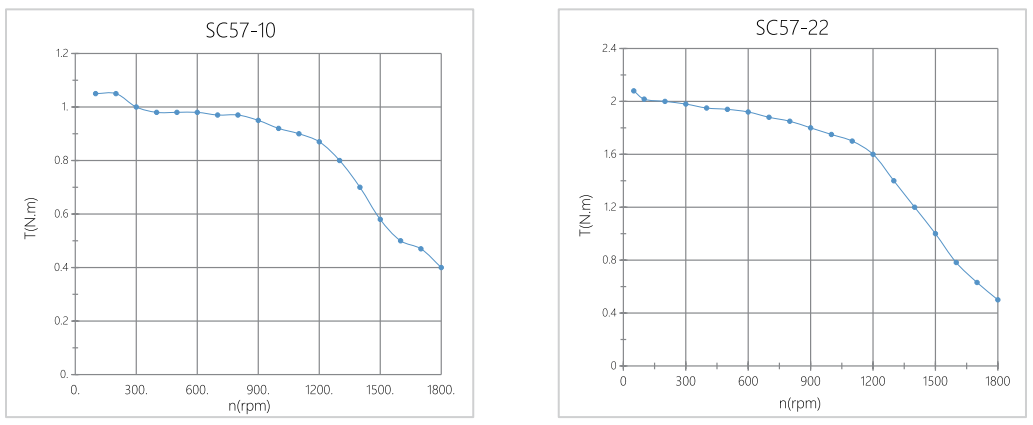

| 坚定不移起动转矩 (Holding torque) | N·m | 1.2 | 2.2 |
| 最高的转数 (Speed ) | rpm | 1800 | 1800 |
| 数字器 (Encoder) | 1000cpr光電增减式项目编码器原理1000cpr incremental optical encoder | ||
| 运转惯量 (Rotor inertia) | g.cm2 | 300 | 480 |

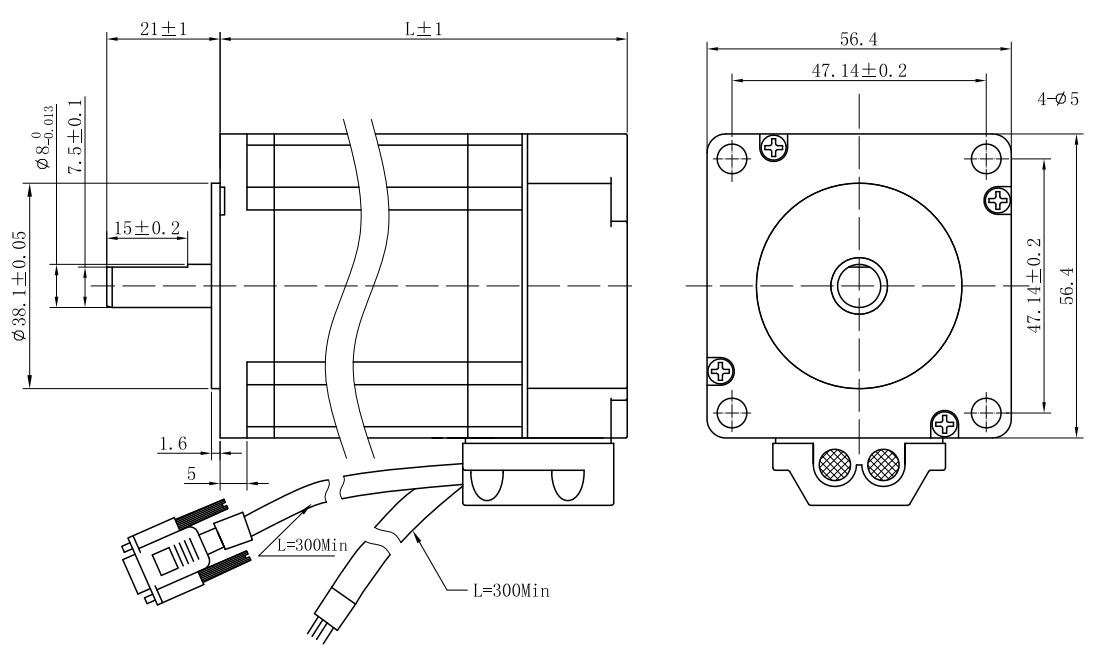

| 整体机身尺寸 (Motor Length) L | mm | 74 | 95 |
| 使用 (Weight ) | Kg | 1 | 1.5 |
| 顺序号No. | 找出线色调Lead Color | 引入线材质Lead Gauge | 效果Function | 表明Description |
| 3 | 红黄色(Red/White) | CableThree rows of15PIN D-SUB | GND | Signal Power negative |
| 2 | 灰白色(Red) | VCC:+5VDC | Signal Power positive | |
| 13 | 蓝色系(Blue) | EA- | Two-channel differential signal (Three-channel differential signal can be provided). | |
| 1 | 蓝玄色(Blue/Black) | EA+ | ||
| 12 | 玄色(Black) | EB- | ||
| 11 | 黑紫色(Black/White) | EB+ | ||
| 1 | 玄色(Black) | CableUL2464AWG20 | A相(Phase A) | |
| 2 | 红色(Green) | C相(Phase C) | ||
| 3 | 小白(Red) | B相(Phase B) | ||
| 4 | 天蓝色(Blue) | D相(Phase D) |
新款上市电气自动化才可以依据客服需设计。
The motor can be designed &manufactured with customized request.
| FL57SC22 | 243.83 KB |
|
| FL57SC10 | 253.05 KB |
|
