学手艺基本参数
造型尺码
村料安装
洽谈分工协作| Ratio加速度比 | 3 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 | 150 | |||
| Weight（食用量） | 0.24kg | 0.3kg | |||||||||||||
| Number of gear trains加快和提升级数 | 2 | 3 | 4 | ||||||||||||
| Nominal torque更多转距 | 10N.m | ||||||||||||||
| Ultimate torque加速度转距 | 15N.m | ||||||||||||||
| Efficiency作用 | 81% | 73% | 66% | ||||||||||||
| Backlash回差 | 4 deg | 3.5deg | 2.5deg | ||||||||||||
| Ratio快速比 | 3 | 7.5 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 | 150 | |
| FL57STH41-60JB | Torque(N.m) (at 300rpm)惯量(N.m) (在 300rpm) | 1.02 | 2.55 | 4.25 | 5.1 | 7.66 | 9.19 | --- | --- | --- | --- | --- | --- |
| speed(rpm)发动机转速(rpm) | 100 | 40 | 24 | 20 | 12 | 10 | --- | --- | --- | --- | --- | --- | |
| FL57STH51-60JB | Torque(N.m) (at 300rpm)起动转矩(N.m) (在 300rpm) | 1.78 | 4.25 | 7.08 | 8.5 | --- | --- | --- | --- | --- | --- | --- | --- |
| speed(rpm)速比(rpm) | 100 | 40 | 24 | 20 | --- | --- | --- | --- | --- | --- | --- | --- | |
| FL57STH56-60JB | Torque(N.m) (at 300rpm)转距(N.m) (在 300rpm) | 1.84 | 4.61 | 7.69 | 9.23 | --- | --- | --- | --- | --- | --- | --- | --- |
| speed(rpm)吃瓜网 转速(rpm) | 100 | 40 | 24 | 20 | --- | --- | --- | --- | --- | --- | --- | --- | |
| FL57STH76-60JB | Torque(N.m) (at 300rpm)惯量(N.m) (在 300rpm) | 2.91 | 7.29 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| speed(rpm)钻速(rpm) | 100 | 40 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | |

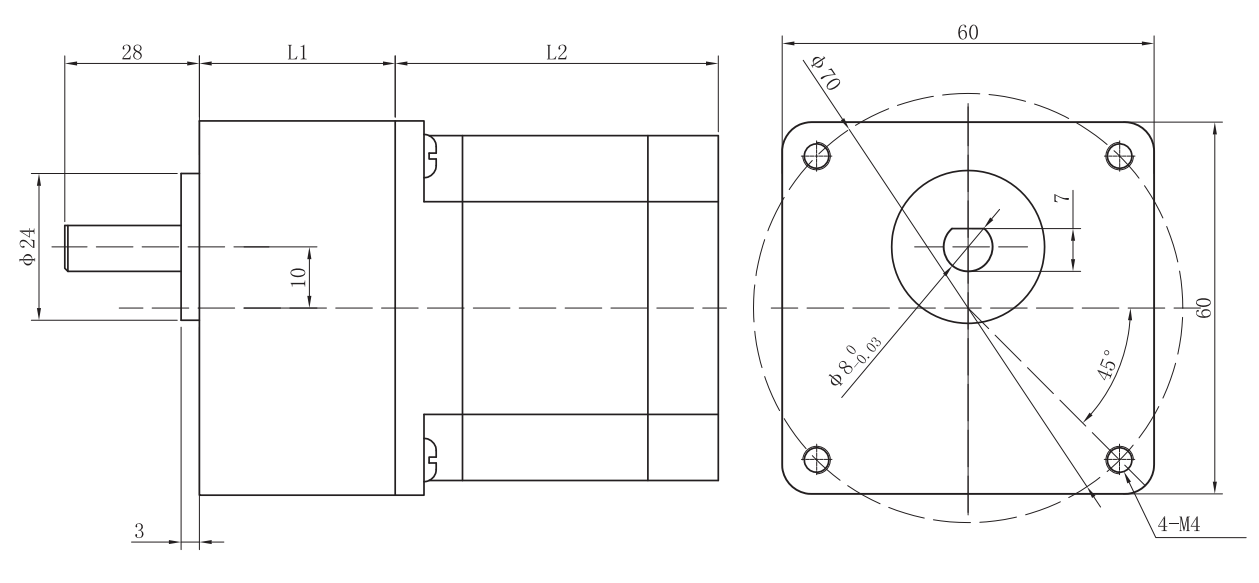

| RATIO加速度比 | L2(mm) | L1(mm) | |||
| FL57STH41-60JB | FL57STH51-60JB | FL57STH56-60JB | FL57STH76-60JB | ||
| 3---15 | 40 | 50 | 55 | 75 | 32 |
| 25---150 | 40 | ||||
换代机电工程要通过老客户都要私人订制。
The motor can be designed &manufactured with customized request.
