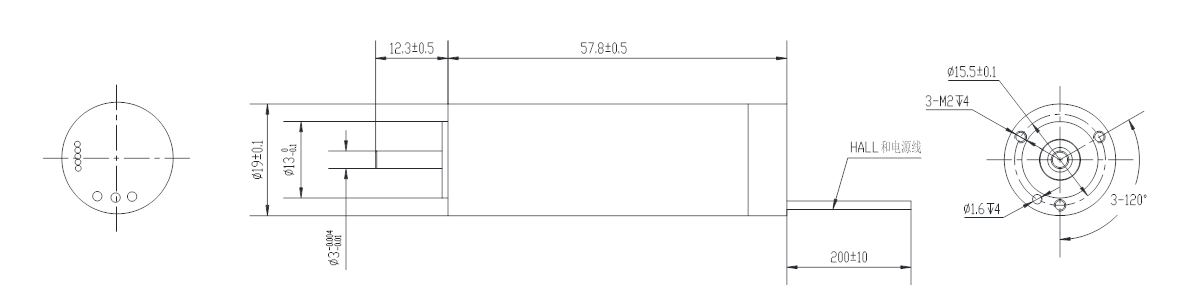

外形图片尺寸
资料下载安装
洽谈操作| 吃瓜网 绕线毗连体例 ( Winding Type ) | 星形 ( Star connection) |
| 介电抗压强度 ( Dielectric Strength ) | 360VAC/1S |
| 隔绝电阻值( Insulation Resistance ) | 100MΩ, 500VDC |
| 情形摄氏度 ( Ambient Temperature ) | -20°C ~ +50°C |
| 绝缘电阻品质 (Insulation Class) | Class B |
| 径向空隔 ( Radial Play ) | 0.02mm@4N |
| 轴径洞眼 ( Axial Play ) | 0.14mm@4N |
| 最好径向负载电阻 ( Max radial force ) | 8N距活套法兰5mm( 5mm From the flange) |
| 极限轴径阻抗 ( Max axial force) | 4N |
| 单 位 (Unit) | FL19SBL56-36V-530-130A | FL19SBL44-12V-280-30A | |
| 极数 ( Number of poles ) | 2 | 2 | |
| 相数 ( Number of phases ) | 3 | 3 | |
| 额外的电压值 ( Rated voltage ) | VDC | 36 | 12 |
| 满载钻速 (No load speed) | RPM | 58000 | 35000 |
| 变压器空载直流电压 (No load current) | A | 0.2 | 0.2 |
| 超额惯量 ( Rated torque) | mN.m | 23.9 | 11 |
| 附加瞬时电流 (Rated current) | A | 4.5 | 3.5 |
| 30%传输速率 ( Rated speed ) | RPM | 53000 | 28000 |
| 上限热效率 ( Rated power ) | W | 130 | 30 |
| 减半效应 (Rated efficiency) | % | 84.5% | 83.7% |
| 基线扭矩 ( Peak torque ) | mN.m | 72 | 33 |
| 基线瞬时电流 ( Peak current ) | A | 13.5 | 10.5 |
| 线电阻器 ( Line to line resistance ) | ohms@20℃ | 0.45 | 0.31 |
| 线电感 ( Line to line inductance ) | mH | 0.045 | 0.027 |
| 转距常数 ( Torque constant ) | mNm/A | 5.6 | 3.2 |
| 反电势 ( Back EMF ) | Vrms/Krpm | 0.42 | 0.24 |
| 底壳-情況热扩散系数( Housing - Ambient thermal resistance) | K/W | 11.6 | 9 |
| 电气热之时 常数(Motor thermal time constant) | S | 840 | 780 |
| 绕阻最大经营许可资料环境温度(Max temperature of winding) | ℃ | 155 | 155 |
| 机电时分常数(Electrical time constant) | ms | 0.1 | 0.087 |
| 线色相( Color) | 线形号(Type) | 攻效( Functions) |
| 灰白色(Red) | AFR250-SY AWG26 | 霍尔电压正(Vcc) |
| 天蓝色(Blue) | 霍尔 W ( Hw ) | |
| 纯天然(Green) | 霍尔 V ( Hv ) | |
| 纯白色(White) | 霍尔 U ( Hu ) | |
| 玄色(Black) | 霍尔电源线负(GND) | |
| 黄色的(Yellow) | UL1332 AWG20 | U相 ( Phase U ) |
| 白色的( Red) | V相 ( Phase V ) | |
| 玄色(Black) | W相 ( Phase W ) |
这款机电设备也能通过朋友必须要 私人定制。
The motor can be designed &manufactured with customized request.
