| 加速比(Ratio) | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 |
| FL57BLS01-60JB | 额外转矩(Rated torque) (N.m) | 0.26 | 0.44 | 0.66 | 0.89 | 1.11 | 1.33 | 2 | 2.4 | 4 | 5.4 | 6.5 | 7.26 | 8.7 |
| 额外转速(Rated speed) (RPM) | 1333 | 800 | 533 | 400 | 320 | 266 | 160 | 133 | 80 | 53 | 44 | 40 | 33 |
| 极限转矩(Ultimate torque) (N.m) | 0.78 | 1.32 | 1.98 | 2.67 | 3.33 | 3.99 | 6 | 7.2 | 10 |
|
|
|
|
| FL57BLS02-60JB | 额外转矩(Rated torque) (N.m) | 0.54 | 0.89 | 1.33 | 1.78 | 2.22 | 2.67 | 4 | 4.8 | 8 | --- | --- | --- | --- |
| 额外转速(Rated speed) (RPM) | 1333 | 800 | 533 | 400 | 320 | 266 | 160 | 133 | 80 | --- | --- | --- | --- |
| 极限转矩(Ultimate torque) (N.m) | 1.62 | 2.67 | 3.99 | 5.34 | 6.66 | 8 | 10 |
|
| --- | --- | --- | --- |
| FL57BLS03-60JB | 额外转矩(Rated torque) (N.m) | 0.8 | 1.33 | 2 | 2.67 | 3.34 | 4 | 6 | 7.22 | --- | --- | --- | --- | --- |
| 额外转速(Rated speed) (RPM) | 1333 | 800 | 533 | 400 | 320 | 266 | 160 | 133 | --- | --- | --- | --- | --- |
| 极限转矩(Ultimate torque) (N.m) | 2.4 | 3.99 | 6 | 8 | 10 |
|
|
| --- | --- | --- | --- | --- |
| FL57BLS04-60JB | 额外转矩(Rated torque) (N.m) | 1.06 | 1.85 | 2.67 | 3.56 | 4.45 | 5.34 | 8 | 9.6 | --- | --- | --- | --- | --- |
| 额外转速(Rated speed) (RPM) | 1333 | 800 | 533 | 400 | 320 | 266 | 160 | 133 | --- | --- | --- | --- | --- |
| 极限转矩(Ultimate torque) (N.m) | 3.18 | 5.55 | 8 | 10 |
|
|
|
| --- | --- | --- | --- | --- |
技艺性能参数

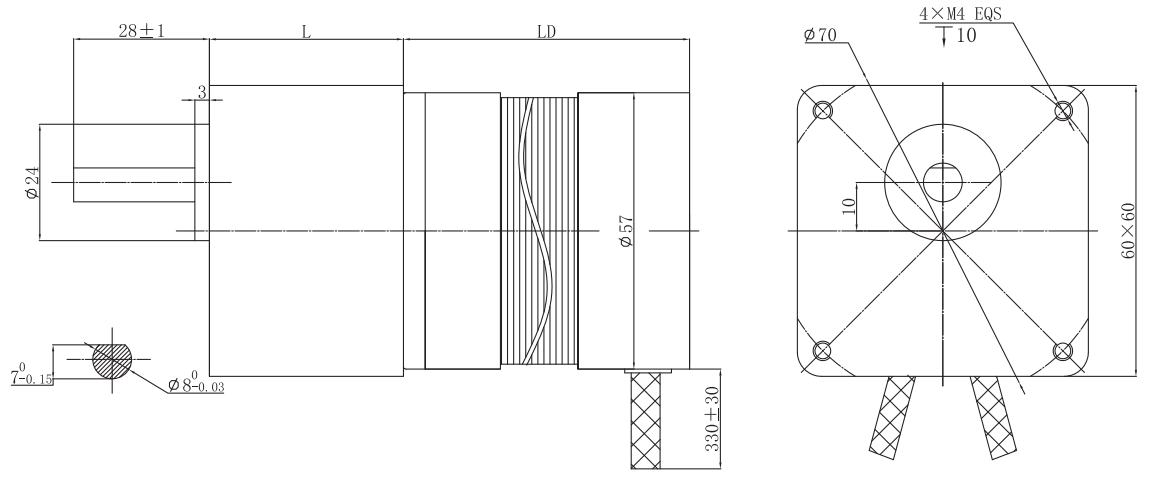

模样尺寸图
